Parts Of A Faucet

Understanding the various parts of a faucet is essential for anyone looking to install, repair, or maintain their plumbing fixtures. Faucets are a crucial component of any kitchen or bathroom, providing a steady flow of water for daily activities. Whether you're a homeowner, a DIY enthusiast, or a professional plumber, knowing the different parts of a faucet can save you time and money. This guide will walk you through the key components of a faucet, their functions, and how to identify them.

Understanding the Basic Parts of a Faucet

Faucets come in various designs and styles, but they all share some common parts of a faucet. Understanding these basic components will help you navigate any faucet-related issues more effectively.

Handle

The handle is the part of the faucet that you turn to control the water flow. It can be a single lever or two separate handles for hot and cold water. The handle is connected to the stem, which regulates the water flow and temperature.

Spout

The spout is the part of the faucet from which water flows. It can be fixed or swiveling, depending on the design. The spout's height and reach are important considerations when choosing a faucet, as they affect how easily you can use it for various tasks.

Aerator

The aerator is a small screen or filter located at the tip of the spout. It mixes air with the water to create a steady, splash-free stream. Aerators also help conserve water by reducing the flow rate. Over time, aerators can become clogged with mineral deposits, which can be cleaned or replaced.

Cartridge or Ball Joint

The cartridge or ball joint is the mechanism that controls the water flow and temperature. In cartridge faucets, a ceramic disc or rubber washer regulates the water. In ball joint faucets, a ball-shaped mechanism with springs and seals controls the flow. These components are often the first to wear out and may need replacement.

O-Rings

O-rings are small rubber seals that prevent water from leaking around the stem and handle. They are essential for maintaining a watertight seal and are often the first part to check if you notice a leak around the handle.

Stem

The stem is the part of the faucet that connects the handle to the cartridge or ball joint. It is responsible for transmitting the handle's movement to the water control mechanism. The stem can be made of various materials, including brass, plastic, or stainless steel.

Supply Lines

Supply lines are the flexible hoses that connect the faucet to the water supply. They are typically made of braided stainless steel or plastic and can be easily replaced if they become damaged or leaky. Supply lines are crucial for ensuring a steady water flow to the faucet.

Mounting Hardware

Mounting hardware includes the nuts, bolts, and washers that secure the faucet to the sink or countertop. Proper installation of mounting hardware is essential for ensuring the faucet is stable and secure. Over time, these components can loosen, leading to leaks or instability.

Types of Faucets and Their Parts

Different types of faucets have unique designs and parts of a faucet. Understanding these variations can help you choose the right faucet for your needs and perform maintenance more effectively.

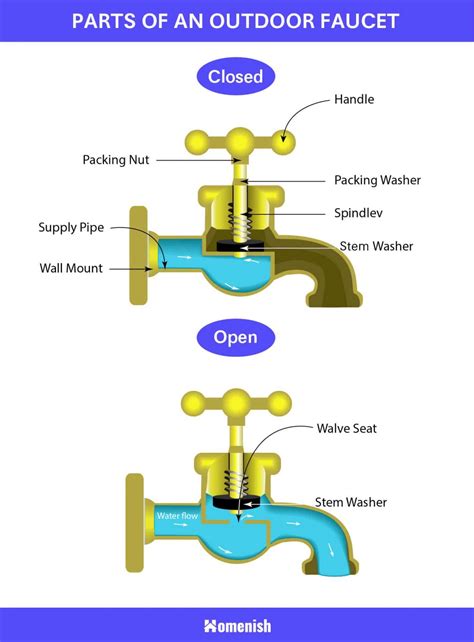

Compression Faucets

Compression faucets use a rubber washer and a screw mechanism to control water flow. They typically have two handles, one for hot water and one for cold. The key parts of a faucet in a compression faucet include:

• Handles
• Stem
• Washer
• O-ring
• Packing nut
• Supply lines

Compression faucets are known for their durability but can be prone to leaks if the washer or O-ring wears out.

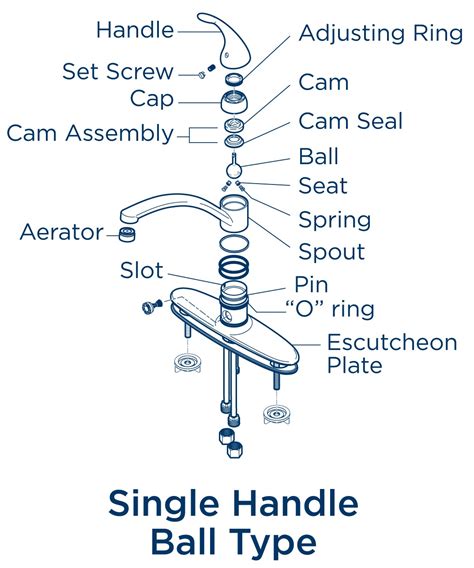

Ball Joint Faucets

Ball joint faucets use a ball-shaped mechanism to control water flow and temperature. They typically have a single lever handle that moves in a circular motion. The key parts of a faucet in a ball joint faucet include:

• Handle
• Ball joint
• Cams and springs
• Seals
• Spout
• Supply lines

Ball joint faucets are easy to use but can be more complex to repair due to their intricate design.

Cartridge Faucets

Cartridge faucets use a ceramic disc or rubber washer to control water flow. They can have a single lever or two separate handles. The key parts of a faucet in a cartridge faucet include:

• Handle
• Cartridge
• O-rings
• Spout
• Supply lines

Cartridge faucets are known for their smooth operation and durability. However, the cartridge can wear out over time and may need replacement.

Disc Faucets

Disc faucets use two ceramic discs to control water flow and temperature. They typically have a single lever handle. The key parts of a faucet in a disc faucet include:

• Handle
• Ceramic discs
• Spout
• Supply lines

Disc faucets are highly durable and resistant to leaks, making them a popular choice for modern kitchens and bathrooms.

Maintaining and Repairing Faucet Parts

Maintaining and repairing the parts of a faucet is essential for ensuring a steady water flow and preventing leaks. Regular maintenance can extend the lifespan of your faucet and save you money on repairs.

Cleaning the Aerator

The aerator can become clogged with mineral deposits over time, reducing water flow. To clean the aerator:

1. Remove the aerator from the spout.
2. Soak it in vinegar to dissolve mineral deposits.
3. Use a small brush to scrub away any remaining debris.
4. Rinse the aerator thoroughly and reattach it to the spout.

💡 Note: Regularly cleaning the aerator can help maintain water flow and prevent clogs.

Replacing O-Rings

O-rings can wear out over time, leading to leaks around the handle. To replace O-rings:

1. Turn off the water supply and remove the handle.
2. Remove the old O-rings from the stem.
3. Install new O-rings, ensuring they are properly seated.
4. Reassemble the faucet and turn the water supply back on.

💡 Note: Always use the correct size and type of O-ring for your faucet to ensure a proper seal.

Replacing the Cartridge

If your cartridge faucet is leaking or not functioning properly, you may need to replace the cartridge. To replace the cartridge:

1. Turn off the water supply and remove the handle.
2. Remove the old cartridge from the faucet body.
3. Install the new cartridge, ensuring it is properly aligned.
4. Reassemble the faucet and turn the water supply back on.

💡 Note: Always use a cartridge that is compatible with your faucet model to ensure proper function.

Replacing the Ball Joint

If your ball joint faucet is leaking or not functioning properly, you may need to replace the ball joint. To replace the ball joint:

1. Turn off the water supply and remove the handle.
2. Remove the old ball joint from the faucet body.
3. Install the new ball joint, ensuring it is properly aligned.
4. Reassemble the faucet and turn the water supply back on.

💡 Note: Replacing the ball joint can be more complex due to the intricate design, so it may be helpful to consult a professional if you are unsure.

Troubleshooting Common Faucet Issues

Understanding the parts of a faucet can help you troubleshoot common issues and perform necessary repairs. Here are some common faucet problems and their solutions:

Leaking Faucet

A leaking faucet can be caused by several issues, including worn-out O-rings, a faulty cartridge, or a damaged washer. To troubleshoot a leaking faucet:

1. Check the O-rings for wear and replace if necessary.
2. Inspect the cartridge or washer for damage and replace if needed.
3. Ensure all mounting hardware is securely tightened.

Low Water Pressure

Low water pressure can be caused by a clogged aerator, mineral deposits in the supply lines, or a faulty cartridge. To troubleshoot low water pressure:

1. Clean the aerator to remove any mineral deposits.
2. Check the supply lines for clogs and replace if necessary.
3. Inspect the cartridge for damage and replace if needed.

No Water Flow

If there is no water flow from the faucet, it could be due to a turned-off water supply, a clogged supply line, or a faulty cartridge. To troubleshoot no water flow:

1. Check the water supply valves to ensure they are turned on.
2. Inspect the supply lines for clogs and replace if necessary.
3. Test the cartridge for proper function and replace if needed.

Squeaky or Stiff Handle

A squeaky or stiff handle can be caused by a lack of lubrication or a worn-out cartridge. To troubleshoot a squeaky or stiff handle:

1. Apply a small amount of lubricant to the handle mechanism.
2. Inspect the cartridge for wear and replace if necessary.

Choosing the Right Faucet for Your Needs

When selecting a new faucet, it's important to consider the parts of a faucet and how they will meet your specific needs. Here are some factors to consider when choosing a faucet:

Type of Faucet

Consider the type of faucet that best suits your needs, such as compression, ball joint, cartridge, or disc faucets. Each type has its own advantages and disadvantages, so choose one that aligns with your preferences and budget.

Material and Finish

The material and finish of the faucet can affect its durability and appearance. Common materials include brass, stainless steel, and plastic. Finishes can range from polished chrome to matte black, so choose one that complements your decor.

Spout Height and Reach

The spout's height and reach are important considerations, especially in kitchens where you may need to fill large pots or clean dishes. Choose a spout that provides enough clearance and reach for your needs.

Additional Features

Some faucets come with additional features, such as pull-down or pull-out sprays, touchless operation, or integrated water filters. Consider these features based on your specific needs and preferences.

Installing a New Faucet

Installing a new faucet involves understanding the parts of a faucet and following the manufacturer's instructions. Here is a general guide to installing a new faucet:

Gather Tools and Materials

Before you begin, gather the necessary tools and materials, including:

• Adjustable wrench
• Screwdriver
• Plumber's putty or silicone caulk
• New faucet and mounting hardware

Remove the Old Faucet

Turn off the water supply and disconnect the supply lines from the old faucet. Remove the mounting hardware and lift the old faucet out of the sink.

Prepare the Sink

Clean the sink surface where the new faucet will be installed. Apply plumber's putty or silicone caulk around the base of the new faucet to create a watertight seal.

Install the New Faucet

Place the new faucet in the sink and secure it with the mounting hardware. Connect the supply lines to the new faucet and tighten the connections with an adjustable wrench.

Test the Faucet

Turn on the water supply and test the faucet to ensure it is functioning properly. Check for any leaks around the base and connections.

💡 Note: Always follow the manufacturer's instructions for installing a new faucet to ensure proper function and safety.

Common Faucet Brands and Their Features

Several brands are known for their high-quality faucets and innovative features. Understanding the parts of a faucet and the unique offerings of different brands can help you make an informed decision. Here are some popular faucet brands and their features:

Delta

Delta is known for its innovative faucet designs and advanced features, such as Touch2O technology, which allows for touchless operation. Delta faucets are available in a variety of styles and finishes, making them a popular choice for modern kitchens and bathrooms.

Moen

Moen offers a wide range of faucets with features like MotionSense technology, which allows for hands-free operation. Moen faucets are known for their durability and stylish designs, making them a reliable choice for any home.

Kohler

Kohler is renowned for its high-quality faucets and innovative designs. Kohler faucets often feature advanced technologies like KOHLER Sensate, which provides touchless operation and voice control. Kohler's commitment to quality and innovation makes it a top choice for luxury kitchens and bathrooms.

American Standard

American Standard offers a variety of faucets with features like Speed Connect technology, which simplifies installation. American Standard faucets are known for their durability and affordability, making them a practical choice for many homeowners.

Grohe

Grohe is a premium brand known for its sleek designs and advanced features, such as SilkMove technology, which ensures smooth operation. Grohe faucets are available in a range of styles and finishes, making them a popular choice for high-end kitchens and bathrooms.

Conclusion

Understanding the parts of a faucet is crucial for maintaining, repairing, and installing these essential plumbing fixtures. Whether you’re dealing with a leaky faucet, low water pressure, or simply looking to upgrade your kitchen or bathroom, knowing the key components and their functions can save you time and money. By following the guidelines and tips outlined in this guide, you can ensure your faucets remain in optimal condition, providing a steady and reliable water flow for years to come.
