Mini Split Lineset

Mini Split Lineset systems have revolutionized the way we approach heating and cooling in residential and commercial settings. These systems offer a flexible and efficient solution for climate control, making them a popular choice for many homeowners and businesses. Understanding the components, installation process, and maintenance of Mini Split Lineset systems is crucial for maximizing their benefits.

Understanding Mini Split Lineset Systems

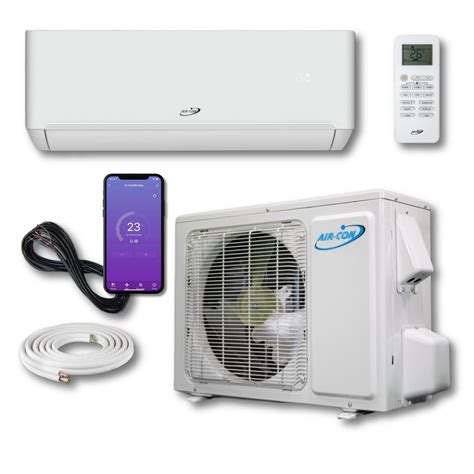

A Mini Split Lineset system, also known as a ductless mini-split system, consists of two main components: an outdoor unit and one or more indoor units. The outdoor unit houses the compressor and condenser, while the indoor units contain the evaporator coils and air handlers. These components are connected by refrigerant lines, known as the Mini Split Lineset, which carry the refrigerant between the units.

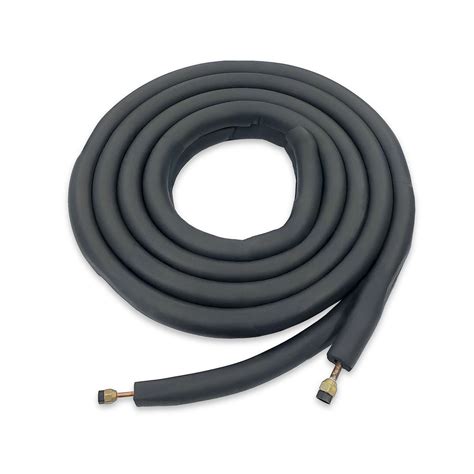

The Mini Split Lineset is a critical part of the system, as it ensures the efficient transfer of refrigerant. The lineset typically consists of two copper tubes: one for the liquid refrigerant and one for the gas refrigerant. These tubes are insulated to prevent condensation and ensure optimal performance.

Components of a Mini Split Lineset System

The key components of a Mini Split Lineset system include:

• Outdoor Unit: Contains the compressor, condenser, and fan. It is responsible for compressing the refrigerant and dissipating heat.
• Indoor Unit(s): Includes the evaporator coil and air handler. It blows cool or warm air into the living space.
• Mini Split Lineset: Consists of copper tubing that connects the outdoor and indoor units, carrying the refrigerant.
• Remote Control: Allows users to adjust the temperature and settings of the system.
• Thermostat: Monitors and controls the temperature in the room.

Installation of Mini Split Lineset Systems

Installing a Mini Split Lineset system involves several steps, from planning to final setup. Here is a detailed guide to help you understand the process:

Planning and Preparation

Before installation, it is essential to plan the layout of the system. This includes determining the location of the outdoor unit, the placement of the indoor units, and the routing of the Mini Split Lineset. Consider factors such as accessibility, aesthetics, and efficiency when planning.

Installing the Outdoor Unit

The outdoor unit should be placed on a stable, level surface, preferably near an exterior wall. Ensure there is enough clearance around the unit for proper airflow. Secure the unit to the ground or wall to prevent movement during operation.

Installing the Indoor Unit(s)

Indoor units can be mounted on walls, ceilings, or floors, depending on the design of the room and the type of indoor unit. Ensure the unit is securely fastened and level. Connect the indoor unit to the power supply and test it to ensure it is functioning correctly.

Connecting the Mini Split Lineset

The Mini Split Lineset connects the outdoor and indoor units. This process involves:

• Running the copper tubing from the outdoor unit to the indoor unit through a small hole in the wall.
• Ensuring the tubing is properly insulated to prevent condensation and energy loss.
• Connecting the tubing to the outdoor and indoor units using appropriate fittings and seals.
• Vacuuming the lineset to remove any moisture or air before charging the system with refrigerant.

🔧 Note: It is crucial to follow the manufacturer's guidelines for connecting the Mini Split Lineset to ensure proper functioning and safety.

Charging the System with Refrigerant

Once the lineset is connected, the system needs to be charged with refrigerant. This process involves:

• Connecting the refrigerant cylinders to the system.
• Using a manifold gauge set to monitor the pressure and temperature of the refrigerant.
• Slowly adding refrigerant to the system until the desired pressure is achieved.
• Testing the system to ensure it is operating correctly.

🔧 Note: Charging the system with refrigerant should be done by a licensed professional to ensure safety and compliance with regulations.

Maintenance of Mini Split Lineset Systems

Regular maintenance is essential to keep your Mini Split Lineset system running efficiently. Here are some key maintenance tasks:

Cleaning the Filters

The filters in the indoor units should be cleaned regularly to remove dust and debris. This ensures optimal airflow and prevents the system from working harder than necessary.

Checking the Refrigerant Levels

Low refrigerant levels can indicate a leak in the Mini Split Lineset. Regularly check the refrigerant levels and address any leaks promptly to maintain the system's efficiency.

Inspecting the Outdoor Unit

The outdoor unit should be inspected for any signs of damage or debris. Clean the coils and ensure there is adequate clearance around the unit for proper airflow.

Testing the System

Regularly test the system to ensure it is operating correctly. Check the temperature settings, airflow, and overall performance of the system.

🔧 Note: Regular maintenance by a professional can extend the lifespan of your Mini Split Lineset system and ensure it operates efficiently.

Benefits of Mini Split Lineset Systems

Mini Split Lineset systems offer several benefits, making them a popular choice for heating and cooling:

• Energy Efficiency: These systems are highly energy-efficient, reducing energy consumption and lowering utility bills.
• Flexibility: Mini Split Lineset systems can be installed in various configurations, making them suitable for different types of buildings and spaces.
• Quiet Operation: The indoor units operate quietly, providing a comfortable environment without disturbing noise.
• Easy Installation: Compared to traditional HVAC systems, Mini Split Lineset systems are easier and quicker to install.
• Zoned Heating and Cooling: Multiple indoor units can be controlled independently, allowing for zoned heating and cooling.

Common Issues and Troubleshooting

While Mini Split Lineset systems are reliable, they can encounter issues. Here are some common problems and troubleshooting tips:

Insufficient Cooling or Heating

If the system is not providing adequate cooling or heating, check the following:

• Ensure the filters are clean.
• Check the refrigerant levels and address any leaks.
• Verify that the thermostat is set correctly.

Leaking Refrigerant

If you suspect a refrigerant leak, look for the following signs:

• Frost or ice on the Mini Split Lineset.
• Hissing or bubbling sounds from the lineset.
• Reduced cooling or heating performance.

If a leak is detected, contact a professional to repair the lineset and recharge the system with refrigerant.

Noisy Operation

If the system is making unusual noises, check the following:

• Ensure the outdoor unit is clear of debris.
• Check for loose or damaged components.
• Verify that the indoor unit is securely mounted.

If the noise persists, consult a professional for further inspection.

🔧 Note: Regular maintenance and prompt troubleshooting can prevent minor issues from becoming major problems.

Cost Considerations

The cost of a Mini Split Lineset system can vary depending on several factors, including the size of the system, the number of indoor units, and the complexity of the installation. Here is a breakdown of the costs involved:

While the initial cost of a Mini Split Lineset system may be higher than traditional HVAC systems, the long-term savings in energy efficiency and maintenance can make it a cost-effective choice.

In conclusion, Mini Split Lineset systems offer a versatile and efficient solution for heating and cooling. Understanding the components, installation process, and maintenance requirements is essential for maximizing the benefits of these systems. Regular maintenance and prompt troubleshooting can ensure the system operates efficiently and reliably, providing a comfortable environment for years to come.
